Lub Hwj Chim Ua Si Crawler Bulldozer HD16
Ntaus lej: HD16
Qhov hnyav: 17ton
Xa kev nug
Product Details ofLub Hwj Chim Ua Si Crawler Bulldozer HD16
Haitui HD16 Lub Hwj Chim Hloov Crawler Tsheb Nrau Av
Taw qhia
Crawler Bulldozers yog cov tshuab muaj zog uas tau siv lub tshuab hluav taws xob uas siv lub tshuab tsa rau txav mus rau cov khoom siv.Haitui HD16 tsheb nrau av yog 160hp zog hloov crawler bulldozer.Qhov lub zog hloov kis tau yooj yim dua thiab ua haujlwm yooj yim piv nrog kev siv tshuab.
Ib qho kev ntseeg tau zoo 131KW Weichai WD10G178E25 lub cav muab rau koj lub zog ntau dua thiab ntseeg tau uas koj xav tau.Qhov planetary lub zog hloov kis nrog kev yuam lub nra thiab txoj haujlwm siv lub tshuab hydraulically tau txais lub teeb ua haujlwm ntawm lub tshuab thiab muaj lub zog loj xa hluav taws xob thiab kev ua haujlwm siab.
Cov ntsiab lus Tshwj Xeeb
| Tag nrho | Qhov ntev | 5140 × 3388 × 3032 hli | ||
| Kev Khiav Hauj Lwm Nyhav | 17000 kg | |||
| CAV | Qauv | Weichai WD10G178E25 | ||
| Hom | Dej-txias, hauv-kab, 4-stroke, ncaj qha kev txhaj tshuaj | |||
| Tus naj npawb ntawm Lub tog raj kheej | 6 | |||
| Tshau × Mob stroke | Φ126 × 130 hli | |||
| Piston Kev Txom Nyem | 9.726 L | |||
| Lub Hwjchim Nyob | 131 KW (178HP) @ 1850 rpm | |||
| Max Torque | 765 N · m @ 1300 rpm | |||
| Kev Siv Roj | 214 g / kW · h | |||
| KEV THEM NQI | Torque Hloov | 3-theem, 1 theem, 1 theem | ||
| Kev Xa Tawm | Planetary iav hom, hloov pauv fais fab, yuam lubrication | |||
| Central Tsav Ncej | Muab kauv iav bevel, ib leeg-qib txo kev txo qis, txaws lubrication | |||
| Lub kauj clutch | Ntub dej, ntau lub disc, lub caij nplooj ntoo hlav, lub zog hydraulically sib cais, kev tswj hwm hydraulic | |||
| Lub kauj tsheb | Ntub hom, ntab txoj hlua txhim kho qauv, ko taw nres nrog khawm qis | |||
| Thaum kawg tsav | 2-theem ceev txo ntawm spur iav, txaws lubrication | |||
| TUAJ TXOG KEV LOM ZEM | Hom | Txau tus nqaj, ncua kev teeb tsa ntawm qhov sib npaug | ||
| Tus naj npawb ntawm Carrier Rollers | 2 ib sab | |||
| Tsis Muaj | 6 txhua sab | |||
| Tsis Muaj | 37 ntawm txhua sab | |||
| Taug qab hom khau | Ib Leeg Ntaus | |||
| Dav ntawm Cov khau khiav | 510 hli | |||
| Suab | 203,2 hli | |||
| Khiav Kev Hais Los Ntawm Txoj Haujlwm | 1880 hli | |||
| Hauv pem teb Siab | 0.067 Mpa | |||
| COV LUS HYDRAULIC | Kev Mob Siab Tshaj | 14 Mpa | ||
| Tso Ntaus | Iav Twj Tso Kua Mis | |||
| Kev Txom Nyem | 243 L / Min | |||
| Bore ntawm Kev Ua Haujlwm Lub Tog Raj Kheej | 110 hli × 2 | |||
| TUAJ | Hniav Hom | Ncaj hniav qaij | Lub Hniav | Semi-U-hniav |
| Hniav Muaj Peev Xwm | 4,5 m³ | 4,3 m³ | 5 m³ | |
| Hniav Dav Dav | 3388 hli | 3970 hli | 3556 hli | |
| Hniav Qhov siab | 1150 hli | 1040 hli | 1120 hli | |
| Max Poob Hauv Qab Av | 540 hli | 540 hli | 530 hli | |
| MaxTilt Hloov Kho | 400 hli | - | 400 hli | |
| PEB NRHIAV LUB RIPPER | Max khawb qhov tob | 572 hli | ||
| Max nqa saum npoo av | 592 hli | |||
| Nyhav ntawm 3-shank ripper | 1667 kg | |||
Nta Tseem Ceeb

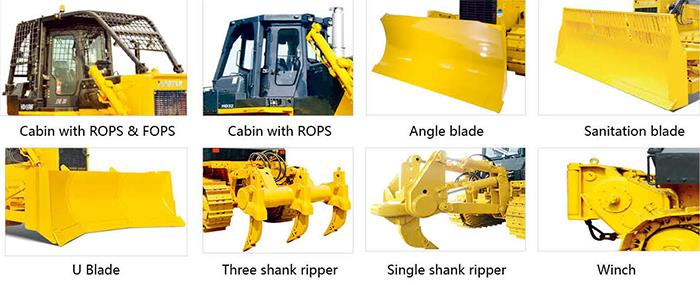

Xaiv
Cov ntawv thov
Haitui crawler tsheb nrau av siv tau rau kev tsim kho, dej thiab hluav taws xob engineering, qib kev ua liaj ua teb, chaw nres nkoj, tsuas thiab lwm yam kev ua haujlwm hauv engineering.
Packing & Shippment
